E3.Cable: Documentation and Design of Cables and Harness

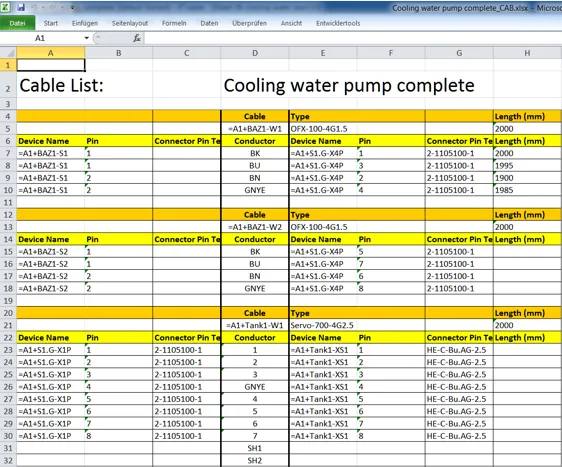

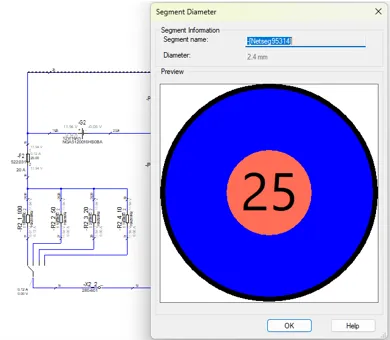

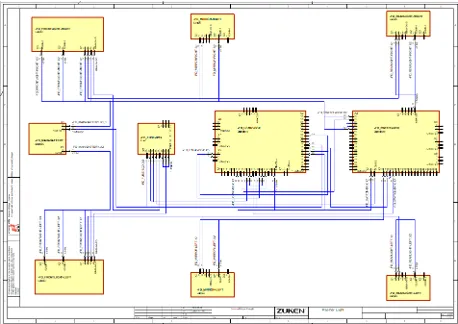

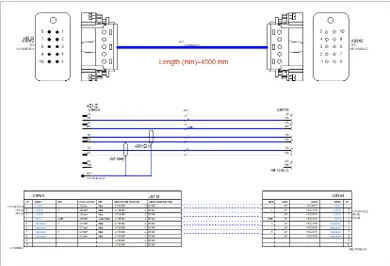

E3.cable is an advanced electrical wiring design tool used to create and document cable plans and wire harness layouts. Building on E3.schematic, it allows designers to group individual conductors into cables or harnesses, add shielding or twisted-pair structures, and visualize them automatically within the schematic. Ideal for industries such as automotive, off-highway, special-purpose vehicles, aerospace, and plant machinery, E3.cable offers comprehensive capabilities for detailing electrical and fluid design projects. Its flexible, high-end functionality supports the entire workflow—from initial definition to design and manufacturing—making it a powerful solution for professional cable harness development.
E3.panel enables full documentation of the control panel and switch gears while the built-in design rule checks prevent errors from entering the manufacturing page
Working with 3D models integrated with E3. Schematic provides the shortest path wire routine and length calculation because of its advanced functionality. Changes made in the panel or schematic are immediately reflected across the design process. It easily navigates between the 2D schematic and 3D panel view. It has a cut-out add-on feature to provide the cut-out area for the manufacturing export, punching, drilling and cutting details for the production.
