E³. 3DRoutingBridge:Integrated Electrical and Mechnical Designs

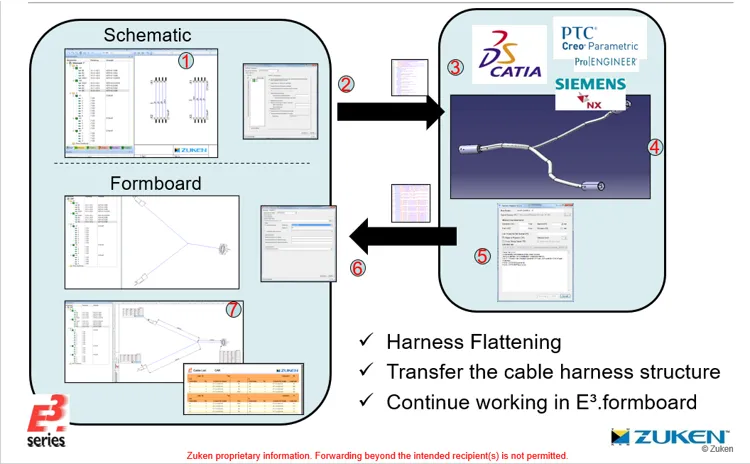

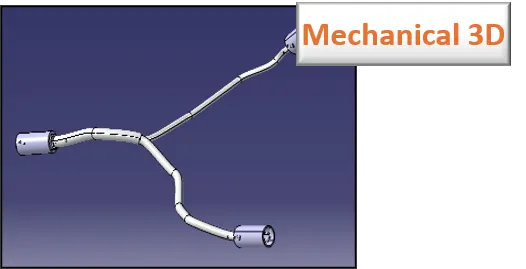

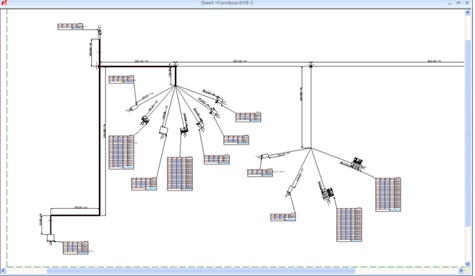

E³.3DRouting Bridge enables a designer to integrate the electrical harness design with all major MCAD vendors. Electrical harness details such as connector, terminals, splices and net list information are transferred to the MCAD system and the length, structure data and harness are fed into E3, where the final details are added for final manufacturing. Routing Bridge works in conjunction with the E3 cable. The supported MCAD systems are as follows:-

1-Autodesk inventor, Dassault system, 3-CATIA V5, Dassault systems Solidworks 3D CAD, PTC Creo Elements Creo Direct, Siemens NX, Siemens SolidEdge.

E³.Revision Management: Manage Different Project States and Documents Modifications

E³.revision management is used to recognize and document the implemented project changes. Defined release states within the project life cycle can be identified, archived and compared. Any two projects or project states can also be compared with one another thus returning meaningful evaluation results.
